What Is a VFD?
A Variable Frequency Drive (VFD) controls both the voltage and frequency supplied to an electric motor, allowing precise speed control.
Instead of running at full speed all the time, the motor operates only at the speed required by the application.
Benefits of a VFD
- Energy saving
- Variable speed control
- Soft start and soft stop
- Longer motor life
- PID pressure control
- Better process control
- Reduced mechanical wear
- Lower maintenance costs
What Is a Soft Starter?
A Soft Starter gradually increases the voltage supplied to the motor during startup.
Its primary purpose is to reduce the inrush current and mechanical shock when the motor starts.
Once the motor reaches full speed, the Soft Starter no longer controls the motor speed.
Benefits of a Soft Starter
Lower starting current
Reduced mechanical stress
Simple installation
Lower initial cost
Suitable for fixed-speed motors

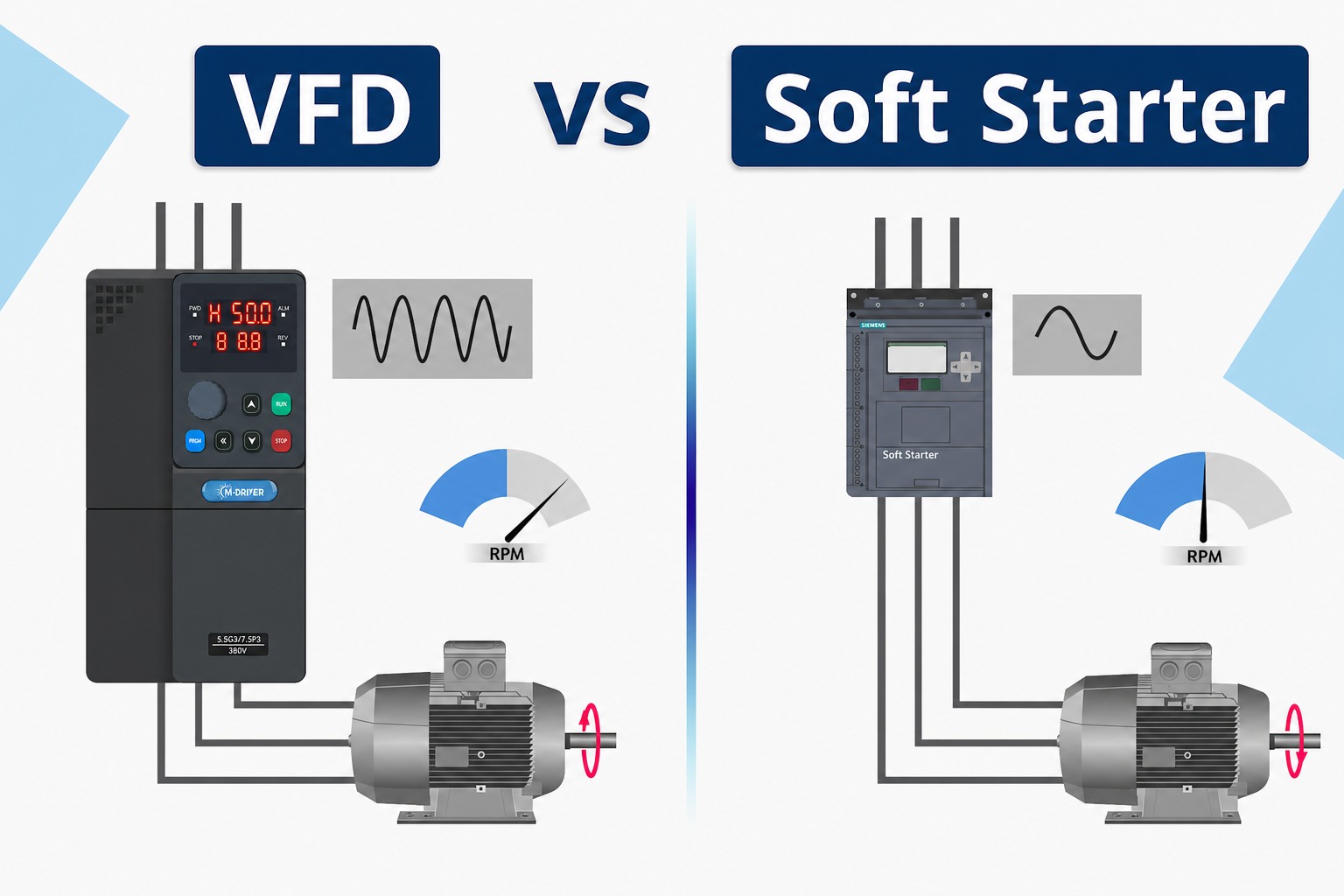

VFD vs Soft Starter Comparison
| Feature | VFD | Soft Starter |
|---|---|---|
| Speed Control | ✔ | ✘ |
| Energy Saving | ✔ | Limited |
| Soft Start | ✔ | ✔ |
| Soft Stop | ✔ | ✔ |
| PID Control | ✔ | ✘ |
| Frequency Adjustment | ✔ | ✘ |
| Constant Pressure | ✔ | ✘ |
| Motor Protection | Excellent | Good |
| Initial Cost | Higher | Lower |
Real Application Cases
Water Pump Systems
Water demand changes throughout the day. A VFD automatically adjusts the pump speed to maintain constant pressure while reducing energy consumption.
Typical energy savings range from 20% to 60%, depending on system design and operating conditions.
Recommended Solution: Variable Frequency Drive (VFD)
Industrial Fans
Large ventilation fans rarely need to operate at full speed.
Using a VFD allows the motor speed to match airflow demand, significantly reducing electricity costs.
Recommended Solution: Variable Frequency Drive (VFD)
Conveyor Systems
A conveyor normally runs at a fixed speed.
If only smooth starting is required, a Soft Starter is often sufficient.
If speed adjustment is required, a VFD is the better choice.
Crushers
Crushers generally operate at a fixed speed.
Their primary requirement is reducing the high starting current.
A Soft Starter is usually the most cost-effective solution.
HVAC Systems
HVAC systems continuously adjust airflow and water flow according to building demand.
A VFD provides precise speed control and improves energy efficiency.
Solar Water Pump Systems
Solar pumping systems require efficient motor control under varying solar conditions.
A Solar Pump Inverter with MPPT technology can maximize solar energy utilization while maintaining stable water output.
Advantages and Disadvantages
Advantages of VFD
- Precise speed control
- Excellent energy saving
- Soft start and soft stop
- Constant pressure control
- PID function
- Multiple motor protection functions
- Lower operating costs
- Better process automation
Disadvantages
- Higher initial investment
- More parameter settings required
Advantages of Soft Starter
- Lower purchase cost
- Easy installation
- Reduced starting current
- Smooth motor startup
- Disadvantages
- No speed control
- Limited energy saving
- Not suitable for applications requiring variable speed
How to Choose Between a VFD and a Soft Starter
Ask yourself the following questions:
- Do you need motor speed control?
- Do you want to reduce energy consumption?
- Is constant pressure control required?
- Does your application require PID control?
- Will the motor always operate at full speed?
- Is your budget limited?
If your application requires variable speed, energy savings, or precise process control, choose a Variable Frequency Drive.
If your application only requires reduced starting current and the motor always runs at full speed, a Soft Starter may be sufficient.
Cost Comparison
A Soft Starter generally has a lower purchase price and simpler installation.
A VFD requires a higher initial investment but can significantly reduce long-term operating costs through energy savings and improved system efficiency.
When evaluating the total cost of ownership, a VFD is often the more economical solution for applications with variable load conditions.
Frequently Asked Questions
Can a VFD replace a Soft Starter?
Yes. In many applications, a VFD can completely replace a Soft Starter while providing additional speed control and energy-saving functions.
Does a VFD consume electricity?
Yes. A VFD consumes a small amount of power during operation, but the energy saved by reducing motor speed is usually much greater than its own power consumption.
Can a Soft Starter save energy?
Only during motor startup.
After startup, the motor runs at full speed, so energy savings are minimal.
Which is better for water pumps?
A Variable Frequency Drive is generally the preferred solution because it provides constant pressure control, variable speed operation, and significant energy savings.
Which solution has a longer service life?
Both products can provide long service life when properly selected, installed, and maintained.
The actual lifespan depends on product quality, operating conditions, and maintenance.
Conclusion
Both Variable Frequency Drives and Soft Starters play important roles in industrial motor control.
If your application requires variable speed control, energy savings, constant pressure, or better process performance, a Variable Frequency Drive is usually the better choice.
If your application only requires reduced starting current and the motor always operates at full speed, a Soft Starter may be sufficient.
Choosing the right motor control solution depends on your application requirements, operating conditions, and long-term operating costs.
