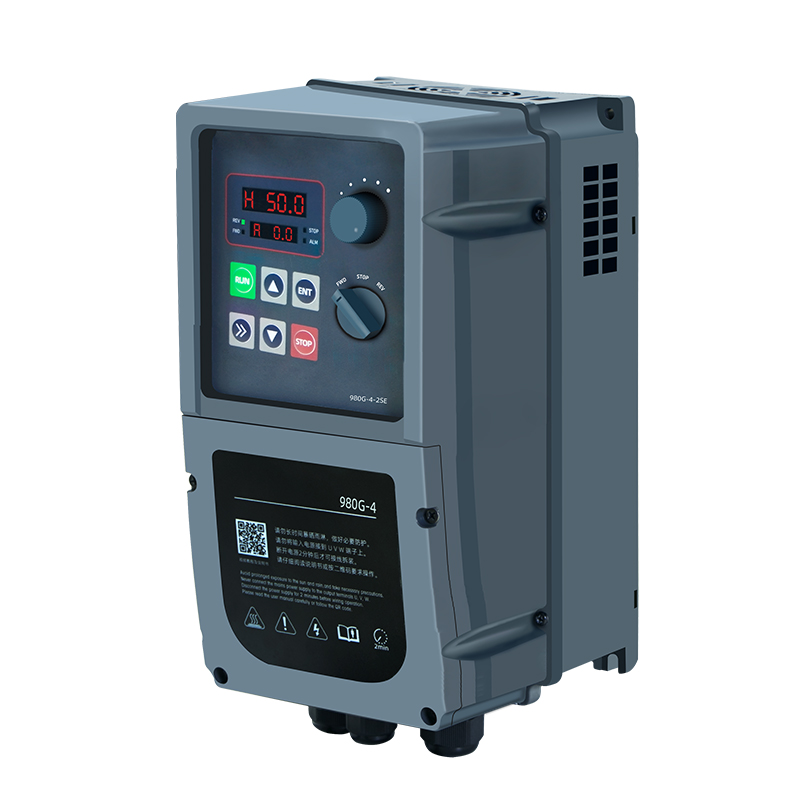

M980 IP66 Waterproof VFD Drive

The M980 IP66 Waterproof VFD Drive is designed for reliable motor control in harsh industrial environments. Featuring a high-level IP66 protection rating, it provides excellent resistance to dust, moisture, and water ingress, making it ideal for outdoor installations and demanding applications. The drive delivers precise speed control, stable performance, and energy-efficient operation for water pumps, fans, conveyors, mixers, and other industrial equipment. With advanced vector control technology and comprehensive protection functions, the M980 ensures long-term reliability while reducing installation and maintenance costs.

Specification:

AC 1PH 220V 0.75kW~7.5kW
AC 3PH 220V 0.75kW~7.5kW
AC 3PH 380V 0.75kW~15kW
Availability: OEM/ODM, Minmum Order Request
Warranty: 18 Months

WhatsApp Chat

Why Choose M980 IP66 Waterproof VFD Drive?

1. IP66 Waterproof & Dustproof Protection

The M980 VFD features an IP66-rated enclosure that provides reliable protection against dust, moisture, and water ingress. Designed for outdoor and harsh industrial environments, it ensures stable operation even under demanding conditions.

2. Power Range from 2.2kW to 15kW

Available in power ratings from 2.2kW to 15kW, the M980 series can meet the requirements of various applications, including water pumps, ventilation fans, conveyors, mixers, and other industrial equipment.

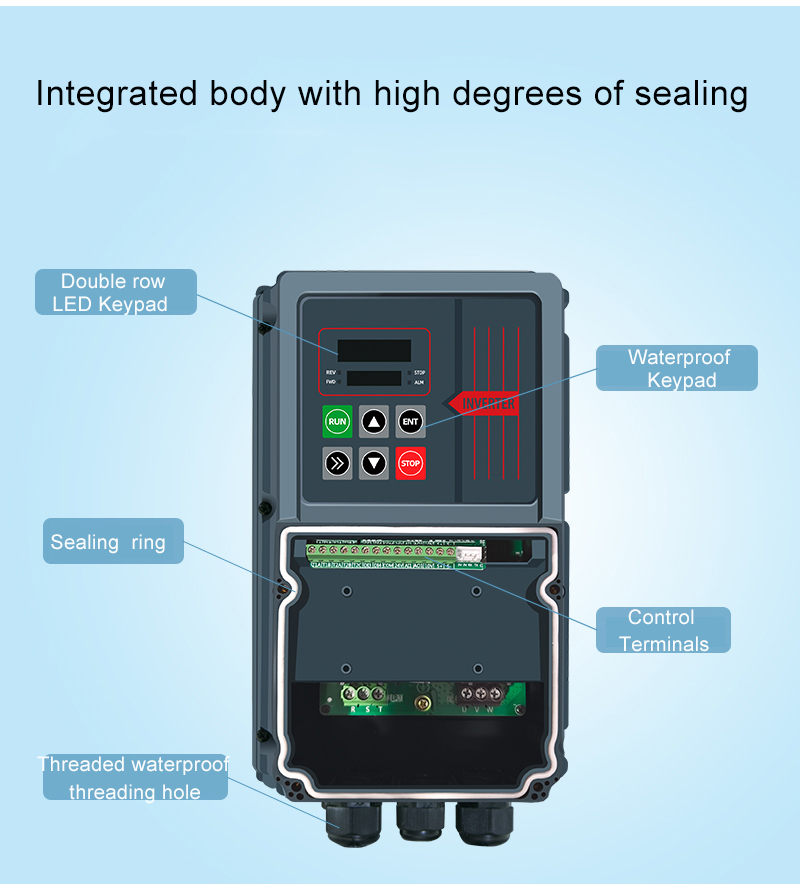

3. Cabinet-Free Installation

The integrated waterproof housing allows direct installation without an additional control cabinet, helping reduce installation costs, save space, and simplify system integration.

4. Stable Vector Control Performance

Featuring advanced vector control technology, the M980 delivers precise speed regulation, stable torque output, and reliable motor performance across different operating conditions.

5. Comprehensive Protection Functions

Built-in protection features include overload, overvoltage, undervoltage, overheating, and short-circuit protection, helping improve equipment safety and operational reliability.

Suitable for Multiple Industrial Applications:

The M980 IP66 Waterproof VFD Drive is widely used in water pumping systems, ventilation equipment, conveyor systems, mixers, compressors, and other industrial machinery requiring reliable motor speed control.

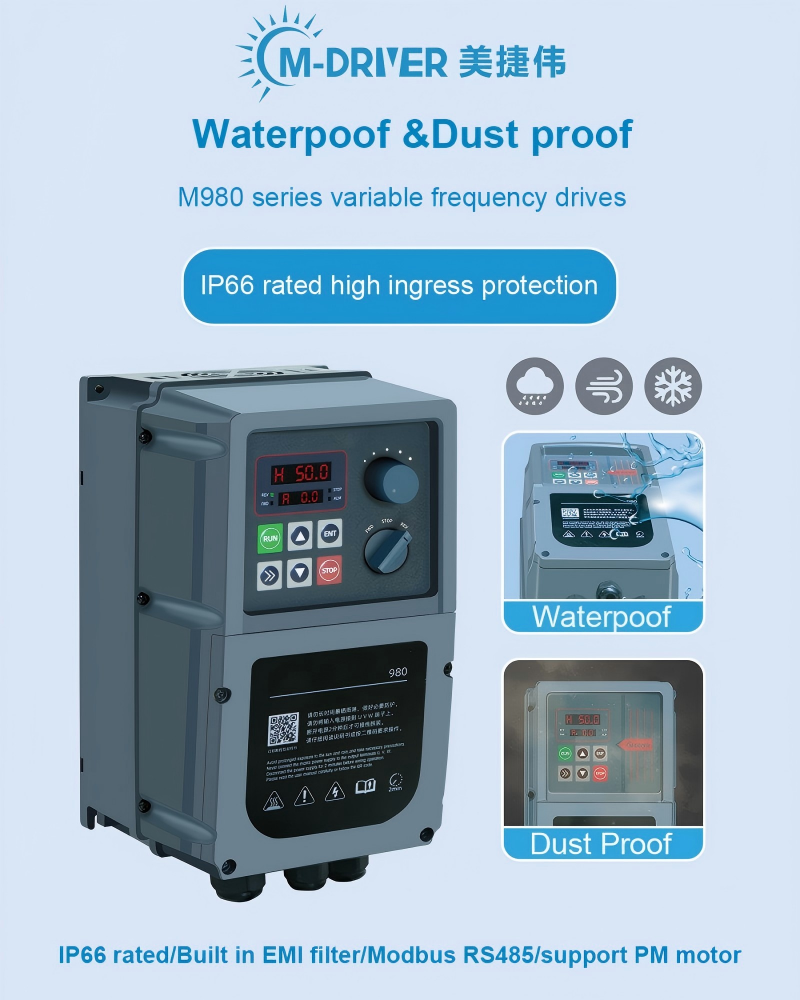

M980 IP66 Waterproof VFD Drive img

WhatsApp Chat

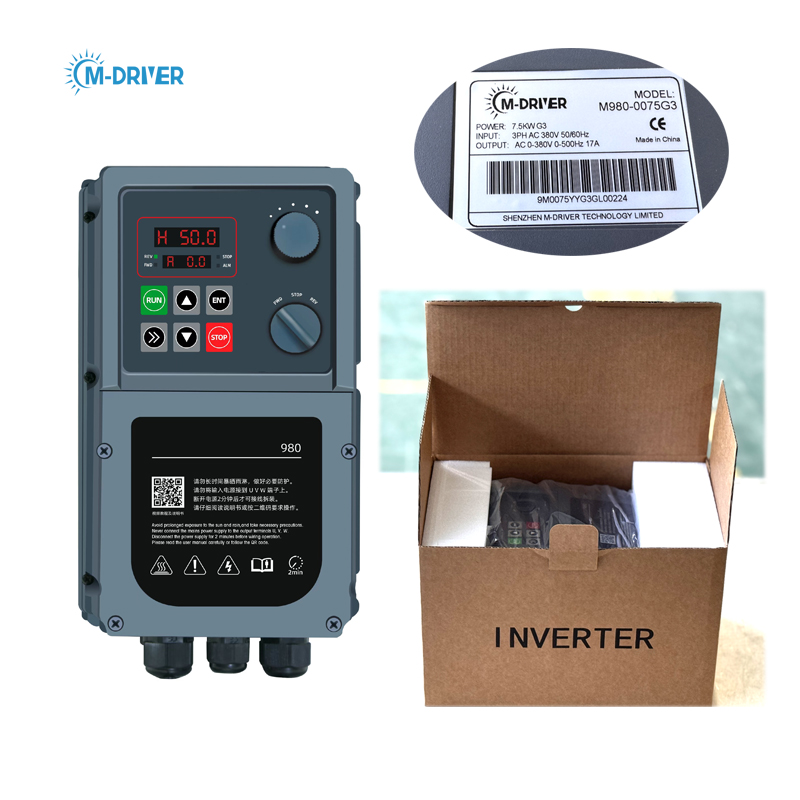

Products Nameplate：

980 General type Inverter Model：

Technical Specifications：

Item		Specifications
Basic Functions	Maximum Frequency	Vector Control：0~500.0Hz V/F Control：0~500.0Hz
	Carrier Frequency	0.5kHz~16kHz; the carrier frequency will be automatically adjusted according to the load characteristics.
	Input Frequency Resolution	Digital Setting： 0.1Hz Analog Setting： 0.01V corresponding maximum frequency ×0.1%
	Control Mode	Open Loop Vector Control(SVC)； V/F Control
	Startup Torque	G Type：0.5Hz/150%(SVC)； P Type：0.5Hz/100%
Basic Functions	Speed Range and Precision	1：100(SVC)；±0.5%(SVC)
	Overload Capability	G Type：150% rated current 60s ；180% rated current 3s
	Torque Boost	0.1%~30.0%
	V/F Curve	Line Type、Square Type
	Acc. / dec Curve	Straight line or S curve acceleration and deceleration mode Acceleration and deceleration time range between 0.0 to 500.0s.
	DC Brake	DC Brake Frequency：0.00Hz to maximum frequency. Brake time： 0.0s to 36.0s
	Multi-speed Running	It can realize at maximum of 8 segments speed running via the control terminal.
	Built-in PID	It is easy to realize process-controlled closed loop control system.
	Over-voltage/current Stall Control	It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process.
	Motor Over-temperature Protection	Acceptable motor temperature sensor input (PT100, PT1000)
	Timing Control	Timing control function：set time range 0.0~6500.0Min
	Bus Support	Support Site Bus：Modbus
	Protection Function	It can implement power-on motor short-circuit detection, output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection, which can be turned on or shielded as required.
Running	Running Command Source	Operation panel reference, control terminal reference, and communication reference
	Target Frequency Source	Digital reference, analog signal reference, multi-segment speed reference, PI control reference, and communication reference

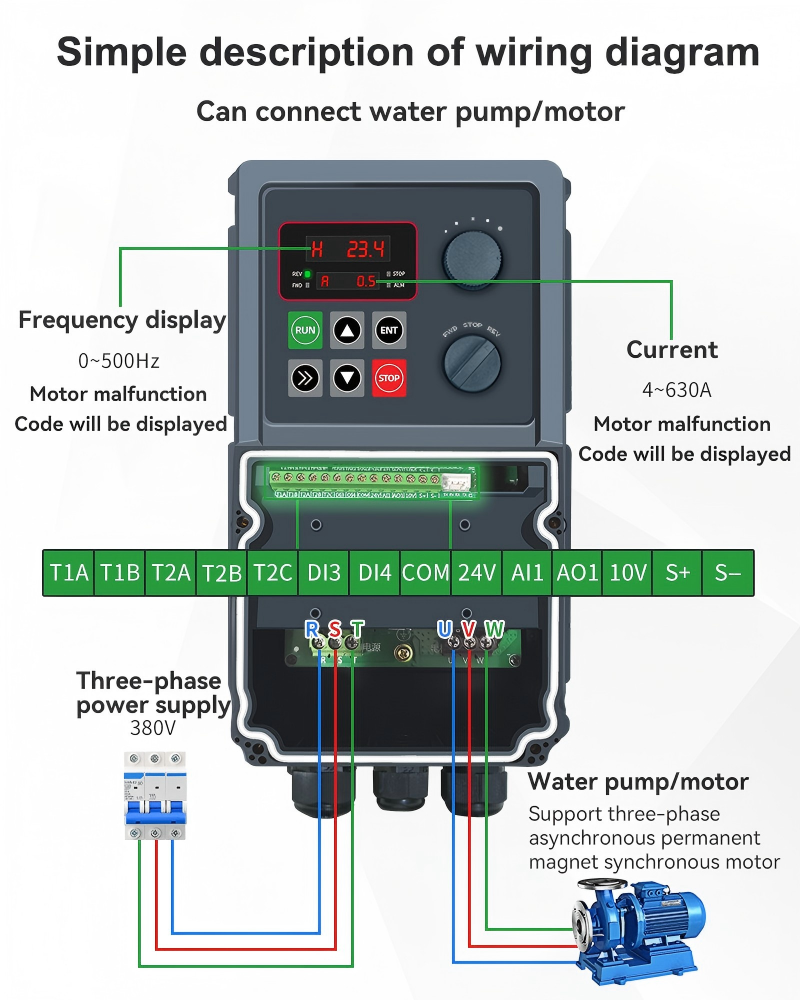

	Control Signal Input Terminal	2 digital input； 1 analog input ,support 0~10V、4~20mA、0~20mA signal
	Control Signal Output Terminal	2 relay output 1 analog output ,support 0~10V、4~20mA、0~20mAsignal
Environment	Using Place	Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
	Altitude	0~4000m；Derating use when more than 1000m (decrease by 1% per 100 meters)
	Ambient Temperature	-10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9m/s (0.6g)
	Storge Temperature	－20℃~＋60℃
	Power Distribution System	TN, TT
