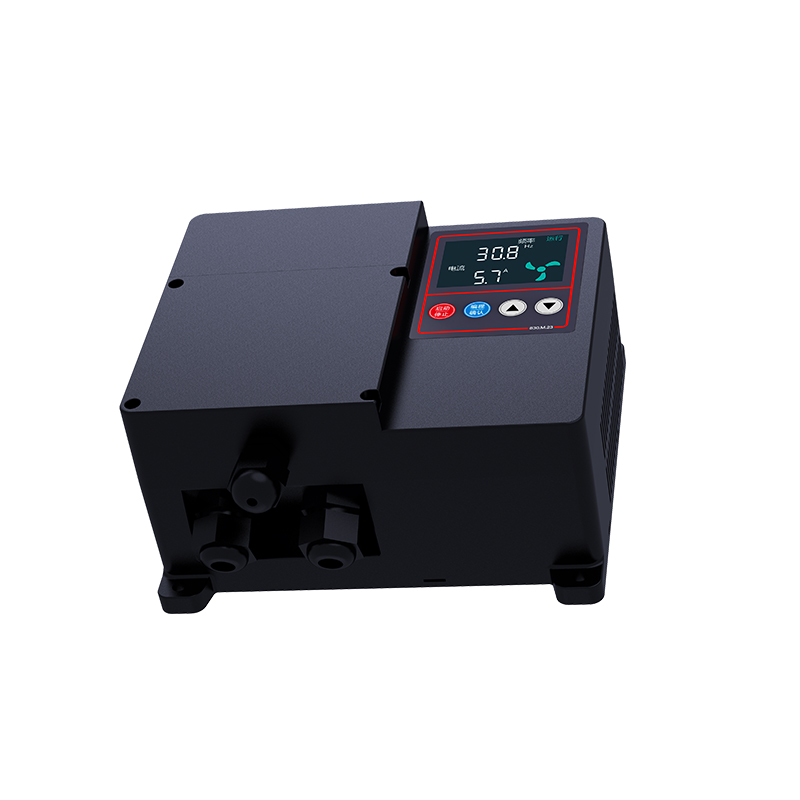

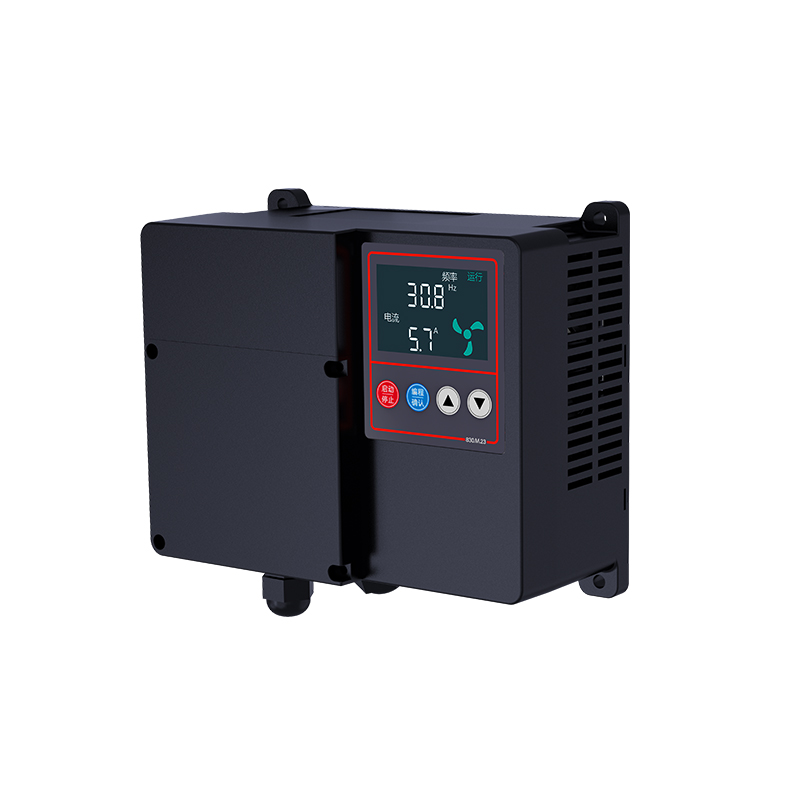

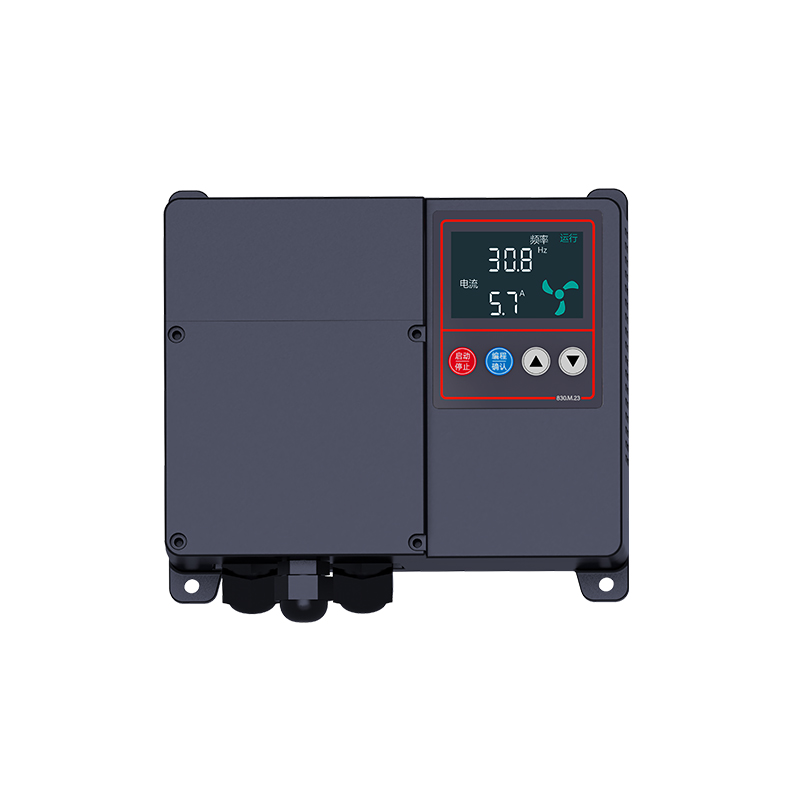

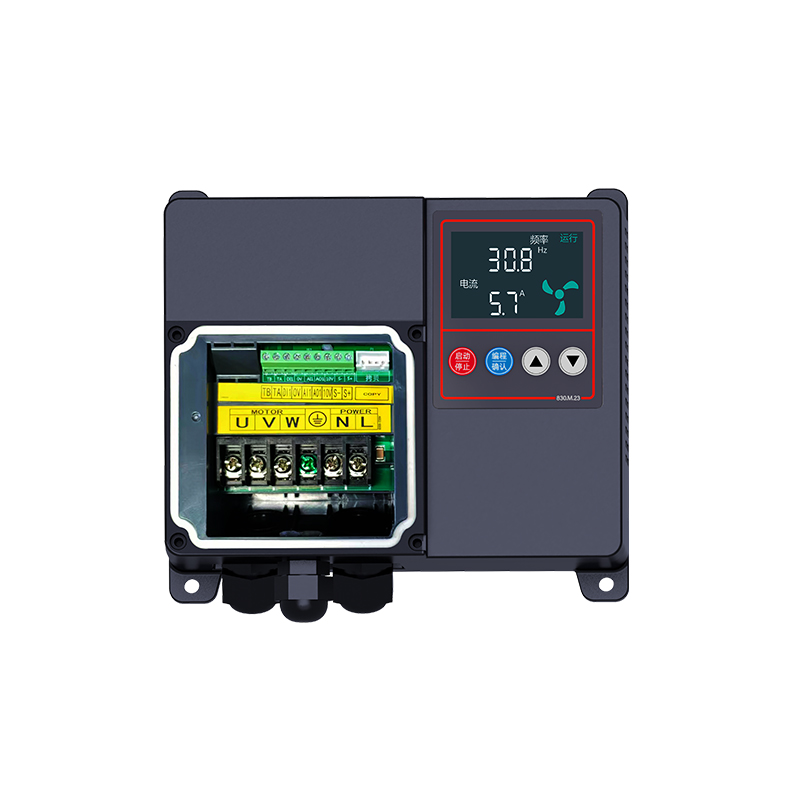

M836 IP54 Waterproof Mini type VFD Drives

M836 VFD Drives integrates core functions and economy. The product has open-loop vector control (SVC) and V/F control modes, with power coverage ranging from 0.75kW to 2.2kW, meeting various light load application requirements. Its compact structure enables small volume installation and provides IP54 protection level, effectively resisting dust and water splashes, ensuring stable operation in common industrial environments.

Specification:

AC 1PH 220V 0.75kW~2.2kW
AC 3PH 380V 0.75kW~2.2kW
Availability: OEM/ODM, Minmum Order Request
Warranty: 18 Months

Characteristics of M836 IP54 VFD Drives

1.Exquisite design and precise control:

equipped with open-loop vector control (SVC), achieving precise speed tracking and stable performance.

2.Powerful feature configuration:

supports 0-500Hz wide frequency domain vector/VF control;

Built in PID regulator,

3.Improve protection mechanism:

equipped with motor overheating protection, overcurrent stall and overvoltage stall automatic protection functions

4.Reliable environmental adaptability:

Designed with an IP54 protection level, it can effectively defend against dust intrusion and water splashes,

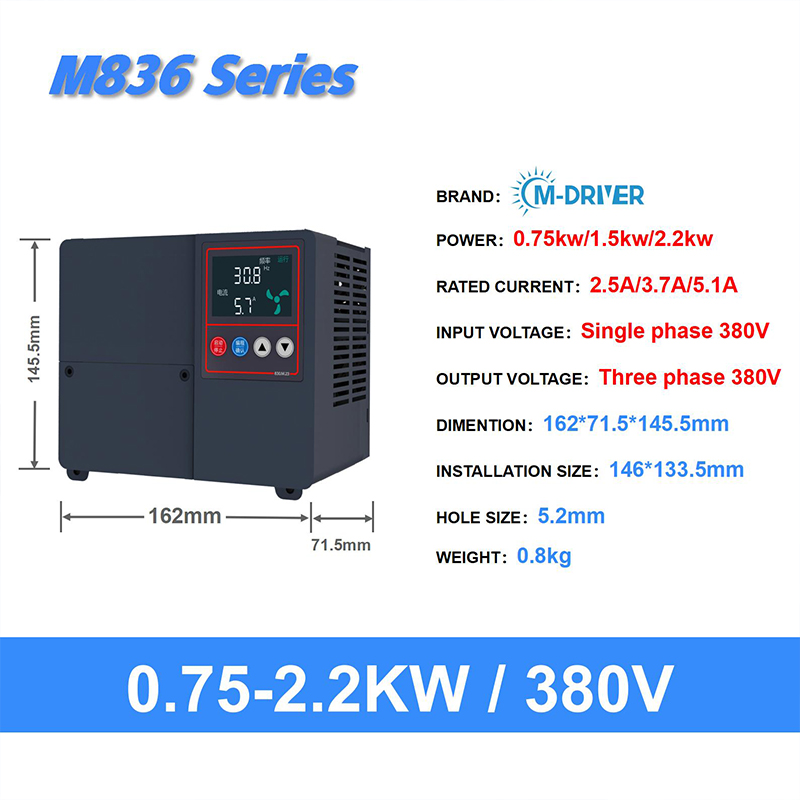

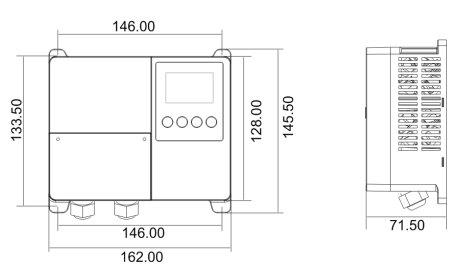

Product dimensions:

836 General type Inverter Model：

Single PhaseInput: 200~240V+10%，50/60Hz
Inverter Model	Adapted motor		Rated output Current(A)	Frame
	KW	HP
836-0007G1	0.75	1	4	A00
836-0015G1	1.5	2	7	A00
836-0022G1	2.2	3	10	A00
Three Phase Input:380~480V+10%,50/60Hz
Inverter Model	Adapted motor		Rated output Current(A)	Frame
	KW	HP
836-0007G3	0.75	1	2.1	A00
836-0015G3	1.5	2	3.7	A00
836-0022G3	2.2	3	5.1	A00
