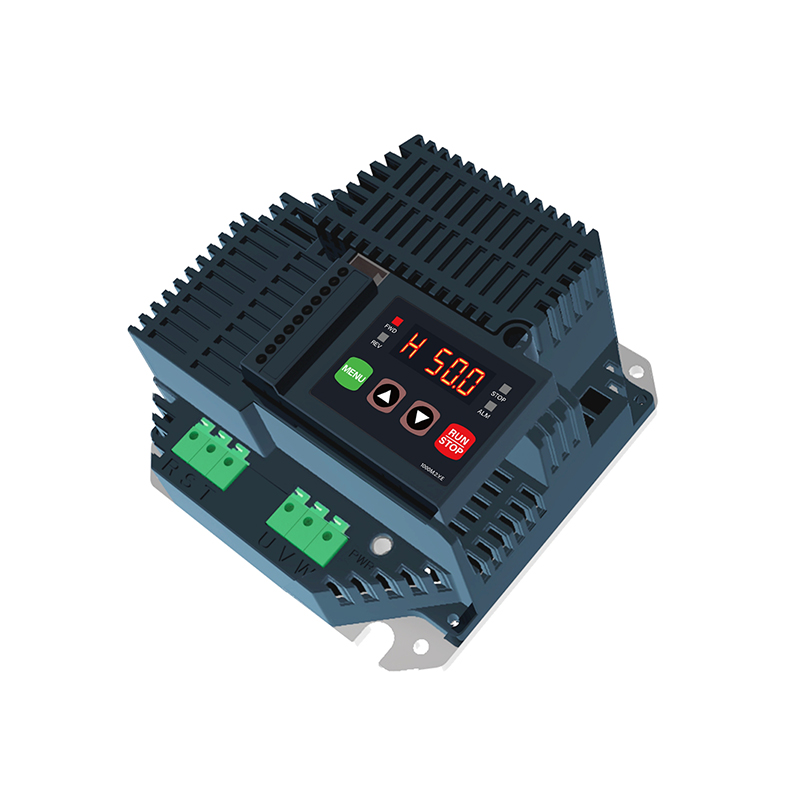

The 1000M series is a high-performance industrial frequency converter that can be deeply customized according to customer needs.
Its characteristics include:
1. High customization and integration flexibility

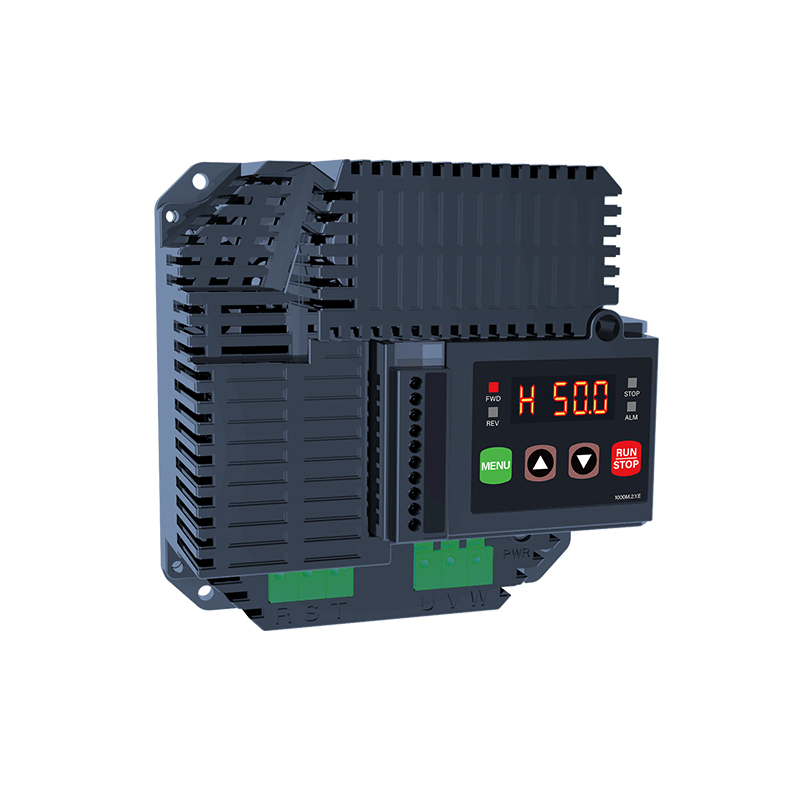

Adopting deep customized design, supporting detachable operation keyboard and compact body.
2. Unique heat dissipation solution
The product body does not have a built-in heat sink and needs to be integrated with the motor heat dissipation plate for installation.
3. Built in grid environment adaptability components

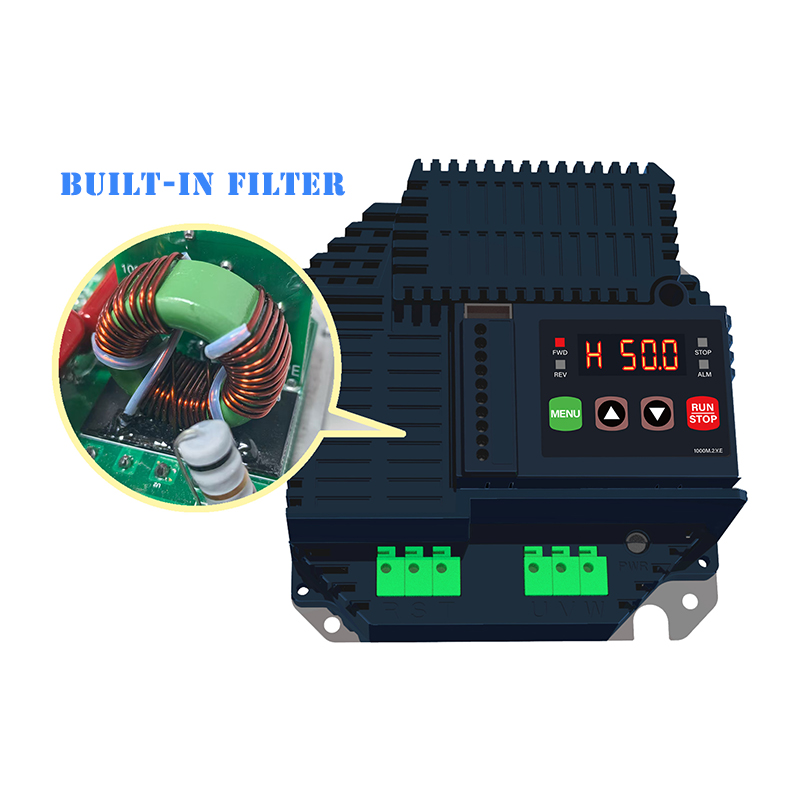

Standard built-in filter and lightning protection function.
4. High performance drivers and controls
Supports advanced open-loop vector control (SVC) and V/F control, providing a wide frequency range of 0-500Hz.
5. High cost-effectiveness and high reliability
IP20 protection level, adopting modular and redundant design.
With its modular design and high adaptability, the 1000M series represents a flexible and robust industrial frequency converter solution, suitable for various demanding applications
Products Nameplate：

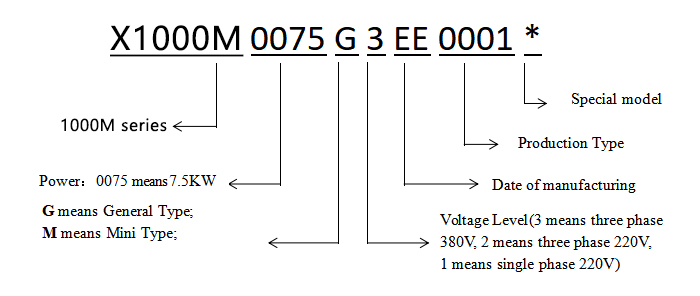

1000M General type Inverter Model：
Technical Specifications：
Item | Specifications | |
Basic Functions | Maximum Frequency | Vector Control：0~500Hz V/F Control：0~500Hz |
Carrier Frequency | 0.5kHz~16kHz; the carrier frequency will be automatically adjusted according to the load characteristics. | |
Input Frequency Resolution | Digital Setting： 0.1Hz Analog Setting： 0.01V corresponding maximum frequency ×0.1% | |
Control Mode | Open Loop Vector Control(SVC)； V/F Control | |
Startup Torque | G Type：0.5Hz/150%(SVC)； P Type：0.5Hz/100% | |
Basic Functions | Speed Range and Precision | 1：100(SVC)；±0.5%(SVC) |
Overload Capability | G Type：150% rated current 60s ；180% rated current 3s
| |
Torque Boost | 0.1%~30.0% | |
V/F Curve | Line Type、Square Type | |
Acc. / dec Curve | Straight line or S curve acceleration and deceleration mode Acceleration and deceleration time range between 0.0 to 500.0s. | |
DC Brake | DC Brake Frequency：0.00Hz to maximum frequency. Brake time： 0.0s to 36.0s | |
Multi-speed Running | It can realize at maximum of 2 segments speed running via the control terminal. | |
Built-in PID | It is easy to realize process-controlled closed loop control system. | |
Over-voltage/current Stall Control | It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process. | |
Motor Over-temperature Protection | Acceptable motor temperature sensor input (PT100, PT1000) | |
Timing Control | Timing control function：set time range 0.0~6500.0Min | |
Protection Function | It can implement power-on motor short-circuit detection, output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection, which can be turned on or shielded as required. | |
Running | Running Command Source | Operation panel reference, control terminal reference |
Target Frequency Source | Digital reference, analog signal reference, multi-segment speed reference | |
Control Signal Input Terminal | 1 digital input； 1 analog input，support 0~10V、4~20mA、0~20mA、20~0mA、20~4mA and 10~0V signal | |
Control Signal Output Terminal | 1 relay output; 1 analog output，support 4~20mA signal(Only applicable to temperature sensors) | |
Environment | Using Place | Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
Altitude | 0~4000m；Derating use when more than 1000m (decrease by 1% per 100 meters) | |
Ambient Temperature | -20 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) | |
Humidity | Less than 95%RH, without condensing | |
Vibration | Less than 5.9m/s (0.6g) | |
Storge Temperature | －20℃~＋60℃ | |
IP Level | IP20 | |
Pollution Level | PD2 | |
Power Distribution System | TN, TT | |
