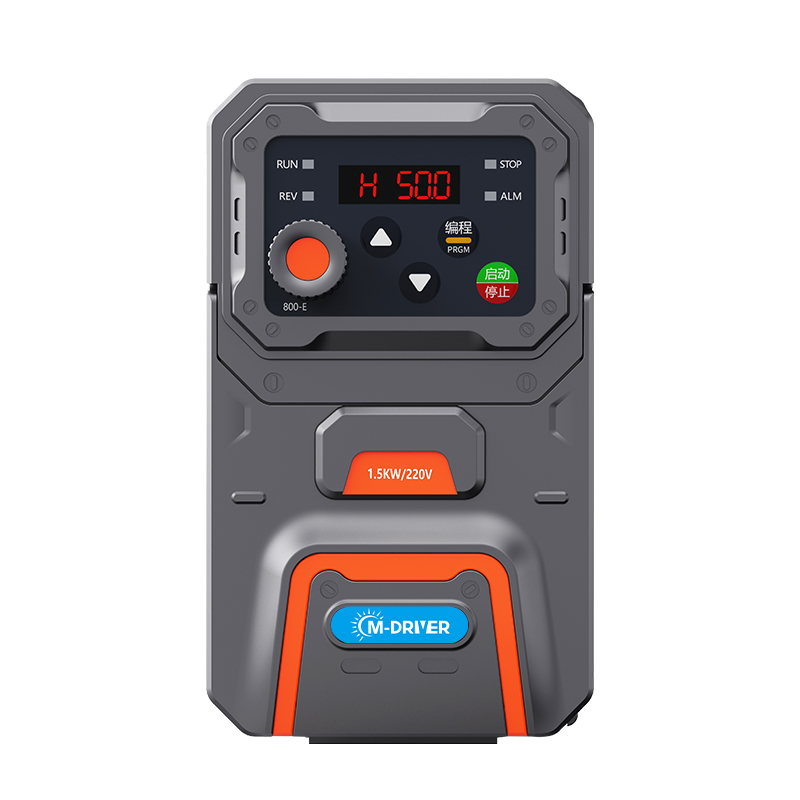

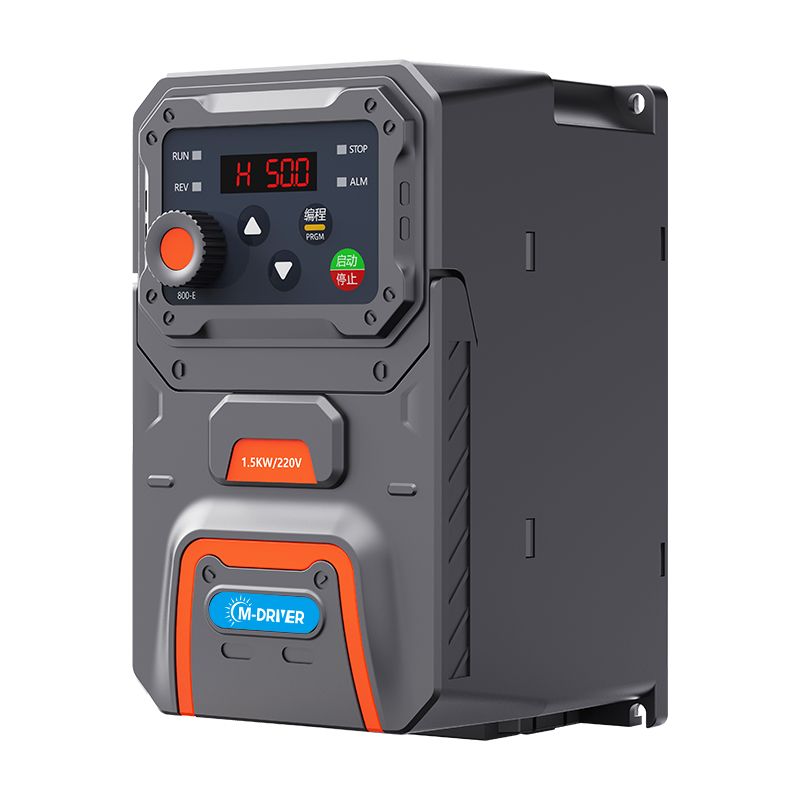

800E Series Low Voltage General Purpose Simple VFD Drives

User-Friendly

• Wide 0-500Hz frequency range for diverse applications

• Compact design for space-saving installation

• Modbus communication for easy system integration

• Direct panel operation with intuitive parameter setting

• Multi-speed control for complex process requirements

• Built-in DC braking and timer functions

• Integrated PID controller for automatic adjustment

Reliable & Durable

• Wide -20℃ to +40℃ operating temperature range

• Suitable for high altitude up to 4000m

• Comprehensive protection and self-diagnosis functions

• High vibration resistance (0.6g) for harsh environments

• Motor temperature monitoring with PT100/PT1000 support

• IP20 protection against dust ingress

• Built-in overload protection for long service life

Precise Control

• Open-loop vector control with 1:100 speed range

• ±0.5% speed control accuracy

• Adjustable acceleration/deceleration patterns

• Automatic current limiting and stall prevention

• Adjustable torque boost (0.1%-30.0%)

• Auto carrier frequency adjustment

• Fast current response for dynamic stability
