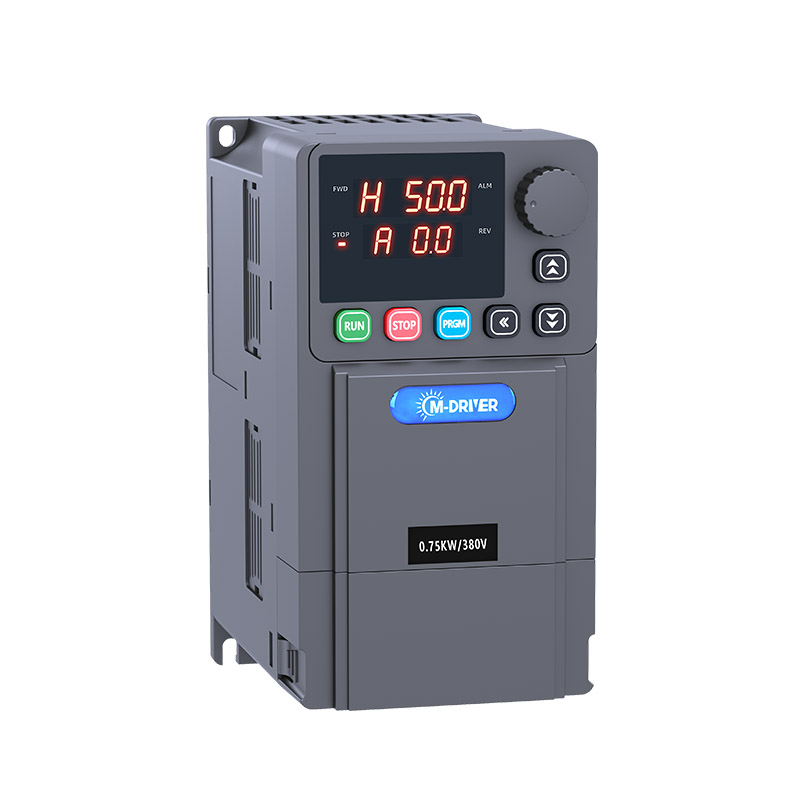

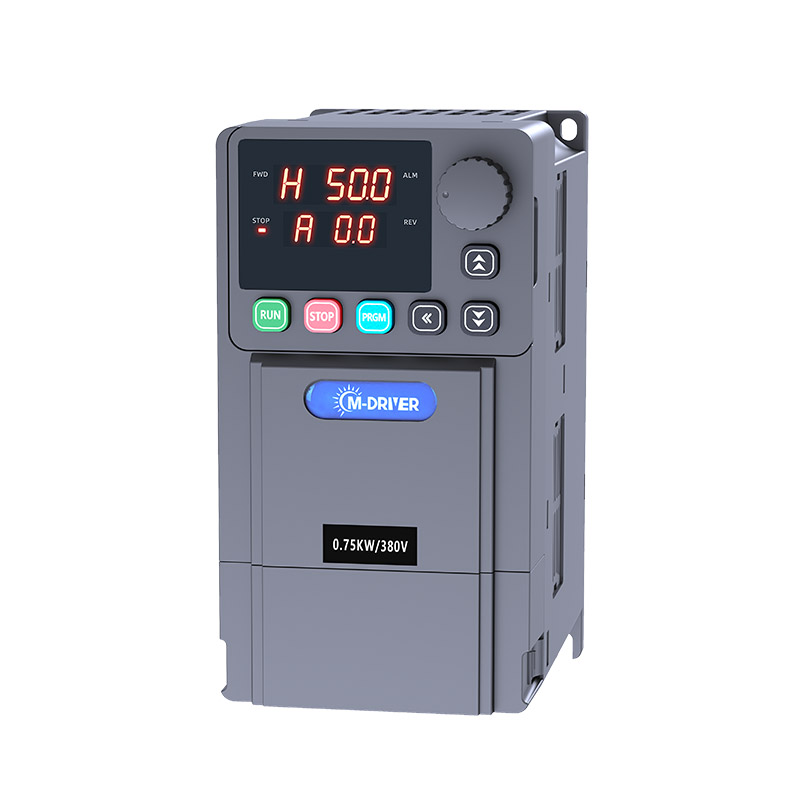

PV500 Series Solar Pump Inverter
1. 0-500Hz Wide Frequency Drive
Drives all pump types with full compatibility, from submersible to surface pumps.
2. 0.75-630kW Heavy-Duty Power
Built for large-scale irrigation and deep-well pumping. Reliable performance under the toughest conditions.
3. High-Efficiency MPPT Technology
Maximizes solar energy harvest. Full power output from sunrise, even in low-light conditions.
4. 220V/380V AC Input
Supports solar DC or grid AC input. Ensures 24/7 uninterrupted water supply.
5. 18-Month Warranty
Durable industrial design with long-term after-sales protection for peace of mind.
Nameplate
Note: This is the example of PV500 standard products and the CE\TUV\IP20 certifications are marked according to the reality.
Type Designation Key
The type designation contains information on the inverter. The user can find the type designation on the type designation label attached to the inverter or the simple name plate.
PV500 | 0055 | G1 |
① | ② | ③ |
Key | Sign | Description | Remarks |
Product abbreviation | ① | Product abbreviation | PV500 Series |
Rated power | ② | Power range | 0.75-500KW |
Voltage degree | ③ | Voltage degree | G1：AC 1PH 220V (-15%) ~240(+10%)
G2：AC 3PH 220V (-15%) ~240(+10%)
G3：AC 3PH 380V (-15%) ~440(+10%) |
Technical Specifications：
General Parameters | |
Application Site | No direct sunshine, no dust, corrosive gas, combustible gas, oil mist, steam, dripping or salinity etc. |
Altitude and Derating Use | 0～2000 m |
| Derated use above 1000m, per 100m, the rated output current decrease 1%. |
Environment Temperature and Derating Use | -10℃～40℃ (Environment Temperature be 40℃～50℃, please keep derated use.) |
Humidity | ≤ 95%, non-condensation |
Vibration | less than 5.9 m/s2（0.6g） |
Storage Temperature | -40℃～+70℃ |
Efficiency | Rated Power Run≥93% |
Installation | Wall or rail mounting |
Protection Grade | IP20 |
Cooling | Forced Air Cooling |
