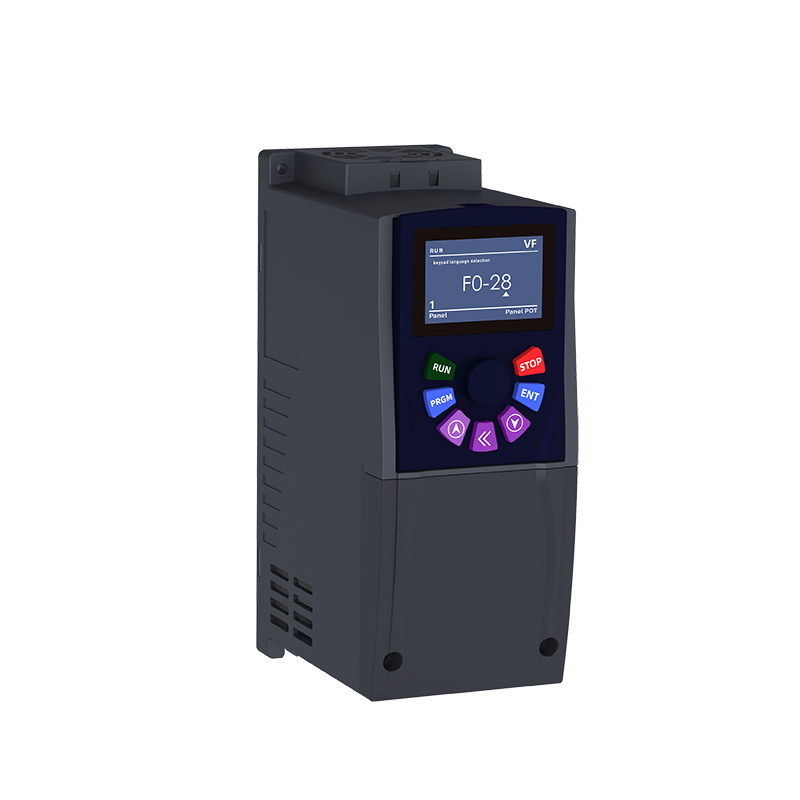

PV500 Series Solar Pump Inverter
Solar pump is a water lifting equipment powered by solar energy, composed of solar pump controller and Pump. When applied, solar cell array with corresponding power is configured according to lift and daily water demand. Mainly used in agricultural irrigation, grassland animal husbandry, urban waterscape, domestic water and other fields.
In recent years, with the global solar power products from the urban application market to a larger scale of farmland, grassland, desert and other demand markets, solar pump has become the core products of the solar industry and agricultural water conservancy, desert management, domestic water and other traditional industries integrated development.
Solar pumps use durable energy from the sun, so the whole operation does not need artificial attended, diesel, and power grid. Solar pump system and drip irrigation, sprinkler irrigation, seepage irrigation and other irrigation facilities supporting application, can save water and energy, greatly reduce the use of high pollution energy and power input cost.
Nameplate
Note: This is the example of PV500 standard products and the CE\TUV\IP20 certifications are marked according to the reality.
Type Designation Key
The type designation contains information on the inverter. The user can find the type designation on the type designation label attached to the inverter or the simple name plate.
PV500 | 0055 | G1 |
① | ② | ③ |
Key | Sign | Description | Remarks |
Product abbreviation | ① | Product abbreviation | PV500 Series |
Rated power | ② | Power range | 0.75-500KW |
Voltage degree | ③ | Voltage degree | G1：AC 1PH 220V (-15%) ~240(+10%)
G2：AC 3PH 220V (-15%) ~240(+10%)
G3：AC 3PH 380V (-15%) ~440(+10%) |
Technical Specifications：
General Parameters | |
Application Site | No direct sunshine, no dust, corrosive gas, combustible gas, oil mist, steam, dripping or salinity etc. |
Altitude and Derating Use | 0～2000 m |
| Derated use above 1000m, per 100m, the rated output current decrease 1%. |
Environment Temperature and Derating Use | -10℃～40℃ (Environment Temperature be 40℃～50℃, please keep derated use.) |
Humidity | ≤ 95%, non-condensation |
Vibration | less than 5.9 m/s2（0.6g） |
Storage Temperature | -40℃～+70℃ |
Efficiency | Rated Power Run≥93% |
Installation | Wall or rail mounting |
Protection Grade | IP20 |
Cooling | Forced Air Cooling |
