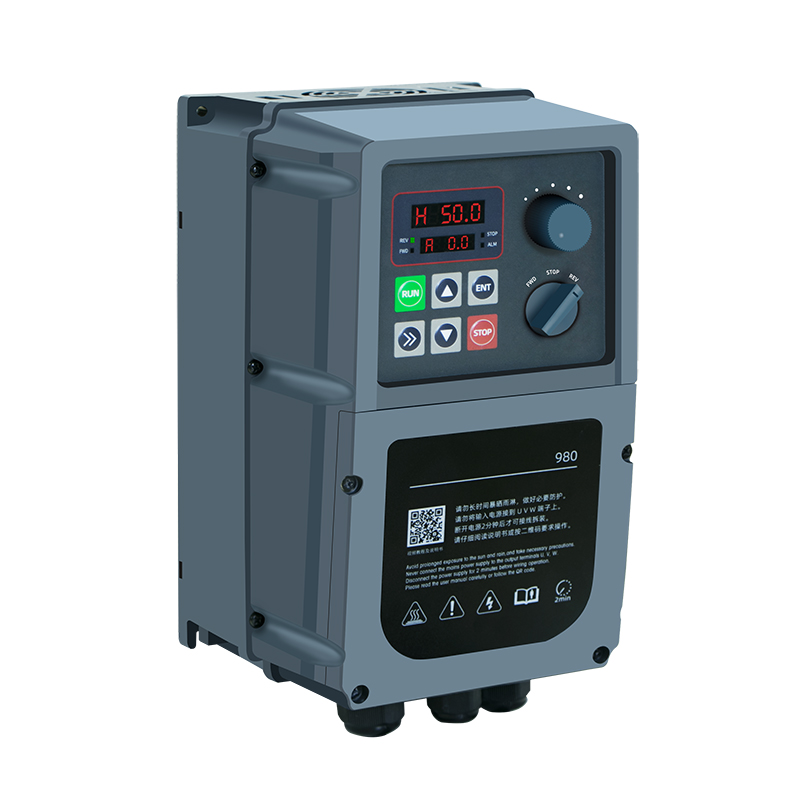

M980 IP66 High-Ingress Protection Drives

M980 IP66 VFD is our newly developed high-performance compact inverter. Featuring an optimized structural design, this product offers a more compact size, sleeker appearance, user-friendly operation, and comprehensive functionality.With exceptional reliability and broad adaptability to various operating conditions, it ensures robust performance in diverse industrial environments.

Specification:

AC 1PH 220V 0.75kW~7.5kW
AC 3PH 220V 0.75kW~7.5kW
AC 3PH 380V 0.75kW~15kW
Availability: OEM/ODM, Minmum Order Request
Warranty: 18 Months

Characteristics of M980 IP66 frequency converter

1. Excellent design and exquisite manufacturing techniques; Powerful hardware speed tracking.

2. Equipped with powerful functional configuration, supporting a wide frequency range of 0-500Hz, built-in PID controller, and supporting closed-loop process control.

3. Multiple protection functions, motor overheating protection; Automatic protection against overcurrent stall and overvoltage stall greatly reduces the probability of frequent overcurrent faults in the frequency converte.

4. Excellent control performance, flexible interface configuration, adaptable to various complex conditions, multiple control methods: panel/terminal/communication control.

5. Durable environmental adaptability: IP66 high protection level; Anti vibration design (≤ 0.6g).

Application of M980 IP66 frequency converter:

Vector control platform products have powerful functions and excellent performance, especially suitable for industrial applications that require high-precision speed regulation and heavy-duty starting, such as machine tools, conveying equipment, fans, water pumps, and other application scenarios.

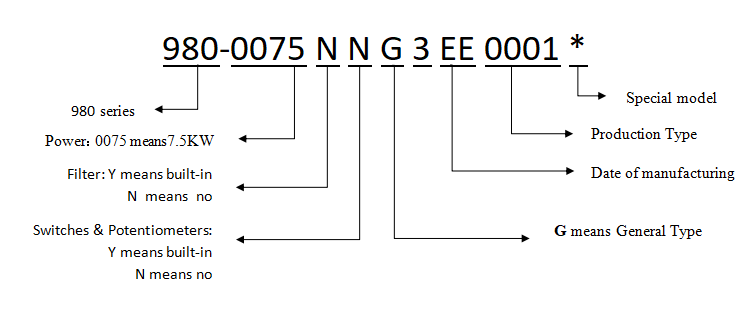

Products Nameplate：

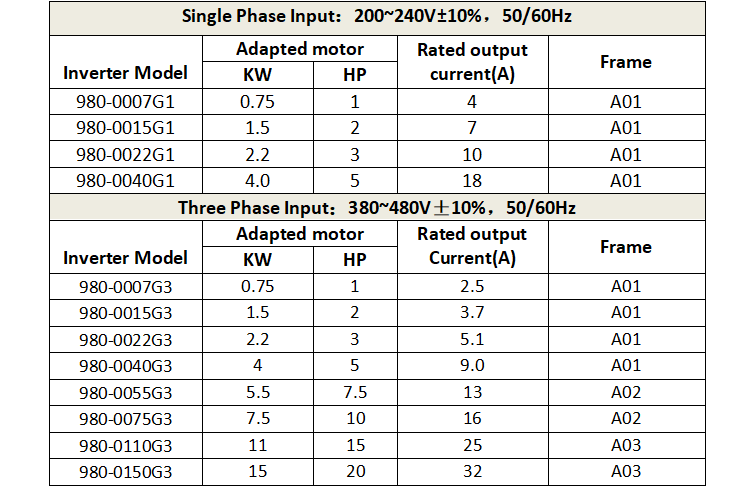

980 General type Inverter Model：

Technical Specifications：

Item		Specifications
Basic Functions	Maximum Frequency	Vector Control：0~500.0Hz V/F Control：0~500.0Hz
	Carrier Frequency	0.5kHz~16kHz; the carrier frequency will be automatically adjusted according to the load characteristics.
	Input Frequency Resolution	Digital Setting： 0.1Hz Analog Setting： 0.01V corresponding maximum frequency ×0.1%
	Control Mode	Open Loop Vector Control(SVC)； V/F Control
	Startup Torque	G Type：0.5Hz/150%(SVC)； P Type：0.5Hz/100%
Basic Functions	Speed Range and Precision	1：100(SVC)；±0.5%(SVC)
	Overload Capability	G Type：150% rated current 60s ；180% rated current 3s
	Torque Boost	0.1%~30.0%
	V/F Curve	Line Type、Square Type
	Acc. / dec Curve	Straight line or S curve acceleration and deceleration mode Acceleration and deceleration time range between 0.0 to 500.0s.
	DC Brake	DC Brake Frequency：0.00Hz to maximum frequency. Brake time： 0.0s to 36.0s
	Multi-speed Running	It can realize at maximum of 8 segments speed running via the control terminal.
	Built-in PID	It is easy to realize process-controlled closed loop control system.
	Over-voltage/current Stall Control	It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process.
	Motor Over-temperature Protection	Acceptable motor temperature sensor input (PT100, PT1000)
	Timing Control	Timing control function：set time range 0.0~6500.0Min
	Bus Support	Support Site Bus：Modbus
	Protection Function	It can implement power-on motor short-circuit detection, output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection, which can be turned on or shielded as required.
Running	Running Command Source	Operation panel reference, control terminal reference, and communication reference
	Target Frequency Source	Digital reference, analog signal reference, multi-segment speed reference, PI control reference, and communication reference

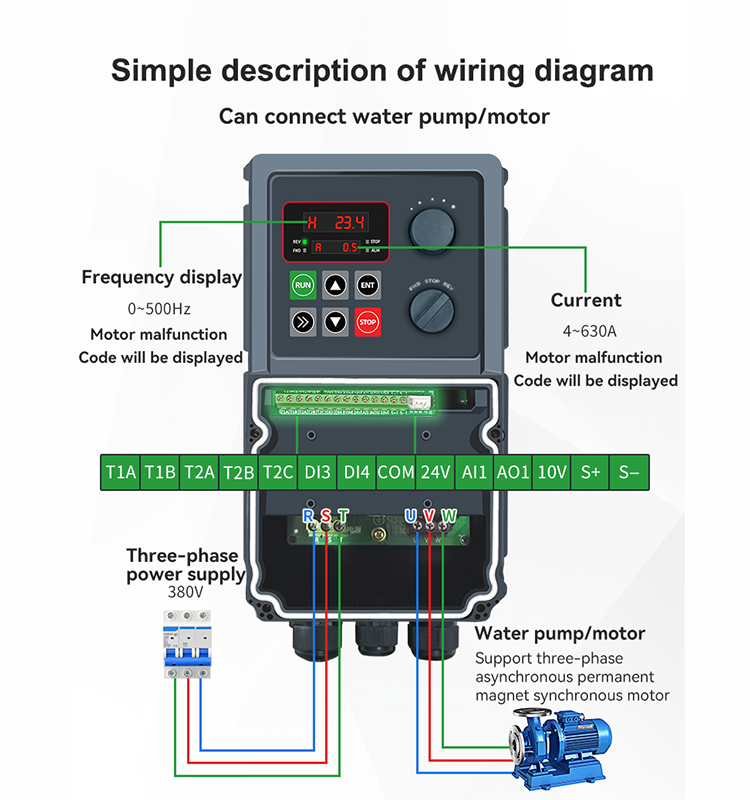

	Control Signal Input Terminal	2 digital input； 1 analog input ,support 0~10V、4~20mA、0~20mA signal
	Control Signal Output Terminal	2 relay output 1 analog output ,support 0~10V、4~20mA、0~20mAsignal
Environment	Using Place	Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
	Altitude	0~4000m；Derating use when more than 1000m (decrease by 1% per 100 meters)
	Ambient Temperature	-10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9m/s (0.6g)
	Storge Temperature	－20℃~＋60℃
	Power Distribution System	TN, TT
